Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Price
US $638
Model
4.0mm-10.0mm
Min. Order
1 ton

Item specifics

Steel Grade
SWRH 82B wire rod
Standard
ASTM, bs, GB, JIS
Featrue
High tensile, low relaxtion
Certification
ISO9001
Tensile strength
1470-1860Mpa
Bending Times
4
Surface
Plain/smooth, spiral ribbed and indented

Product review

Description

Product Name
Prestresseed spiral pc steel wire 4.8mm 1770Mpa used for concrete poles
Surface
Plain/smooth, spiral ribbed and indented
Main executive standards
GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.
Product packaging
Inner diameter: 1600mm-1700mm
Outer diameter: 1900-2000mm
Width of coil: 400 mm
Weight of coil: 1000KG±300KG
Application
PC Wires are applied to prestressed and post-tensioning technology in various shapes of prestressed concrete structures and civil engineering construction, such as large scale railroad, highway bridges, building trusses, overhead crane beams, industrial and prefabricated concrete floor, wall board, TV tower and nuclear power station.

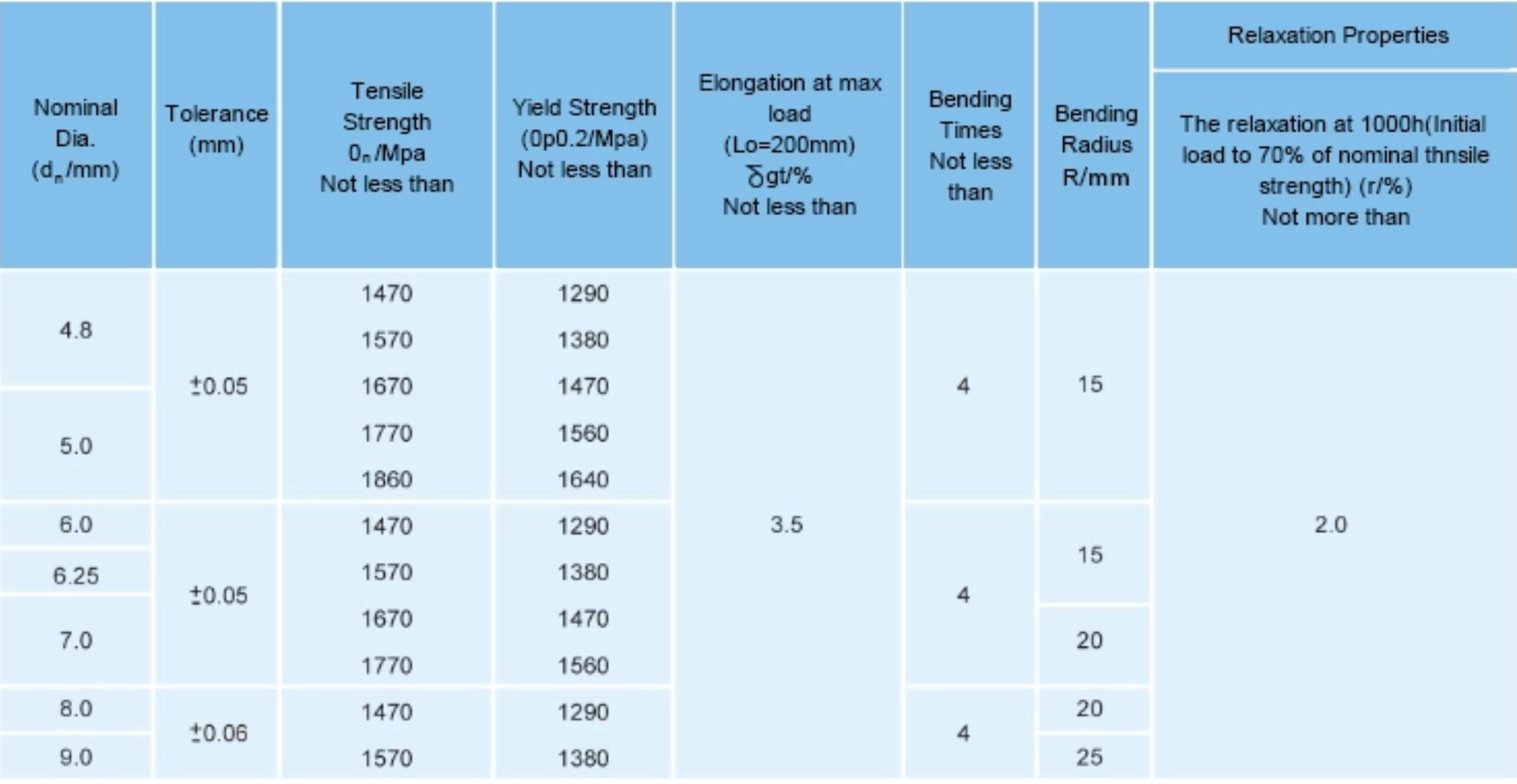

GB/T5223 (Plain/smooth and spiral ribbed)

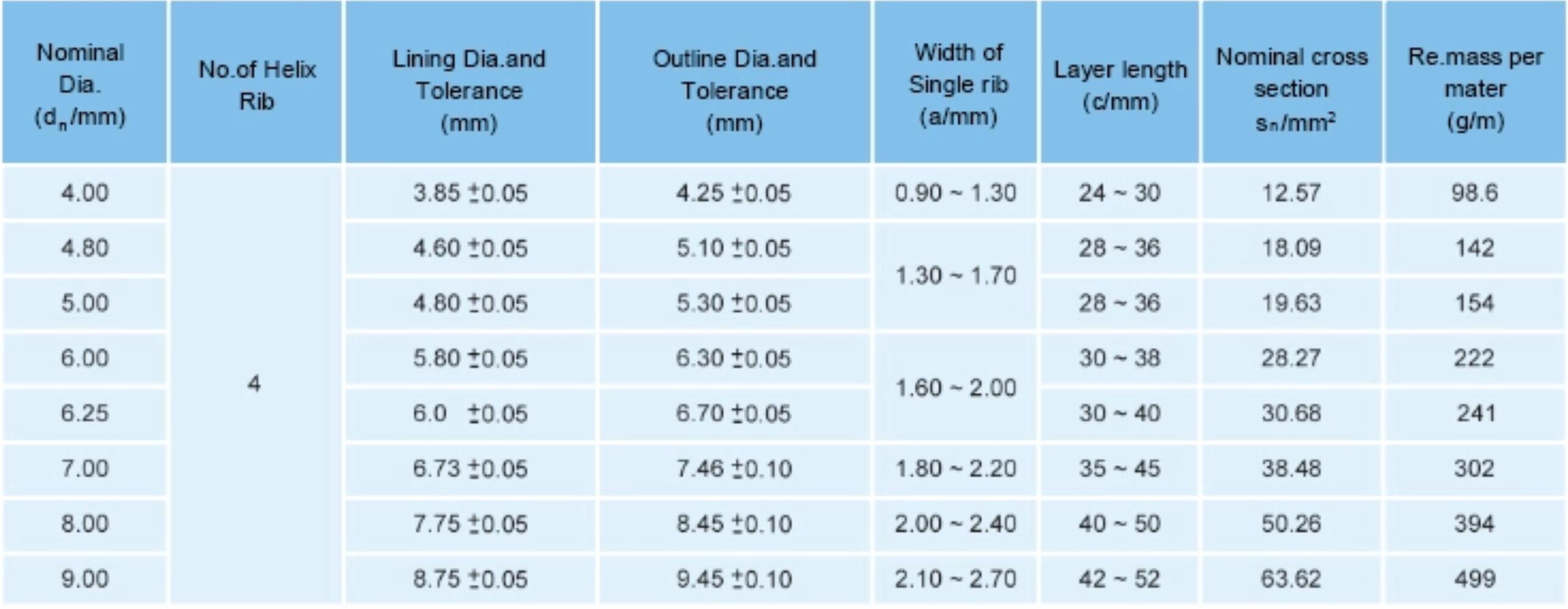

Dimension parameters (spiral ribbed)

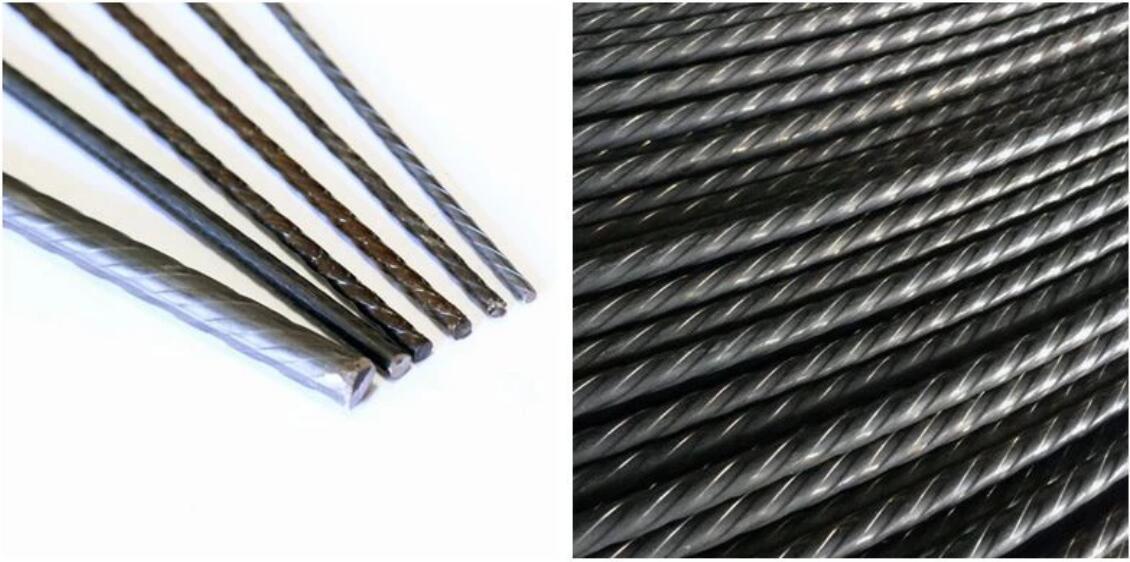

Product Show:

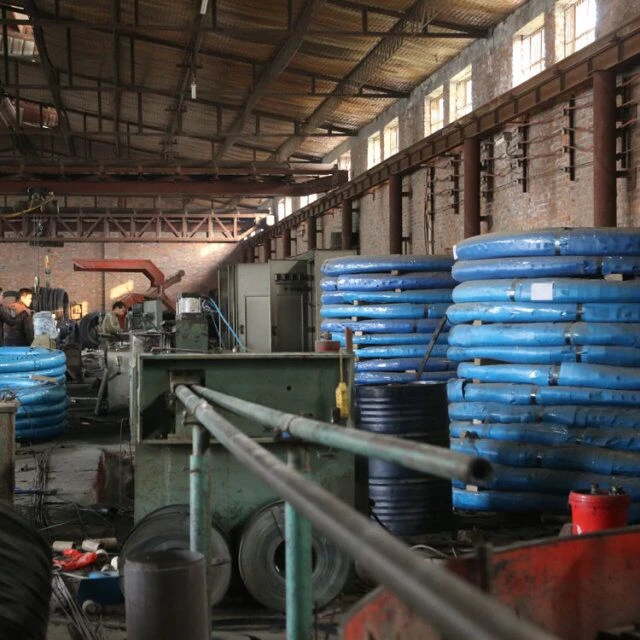

Production line:

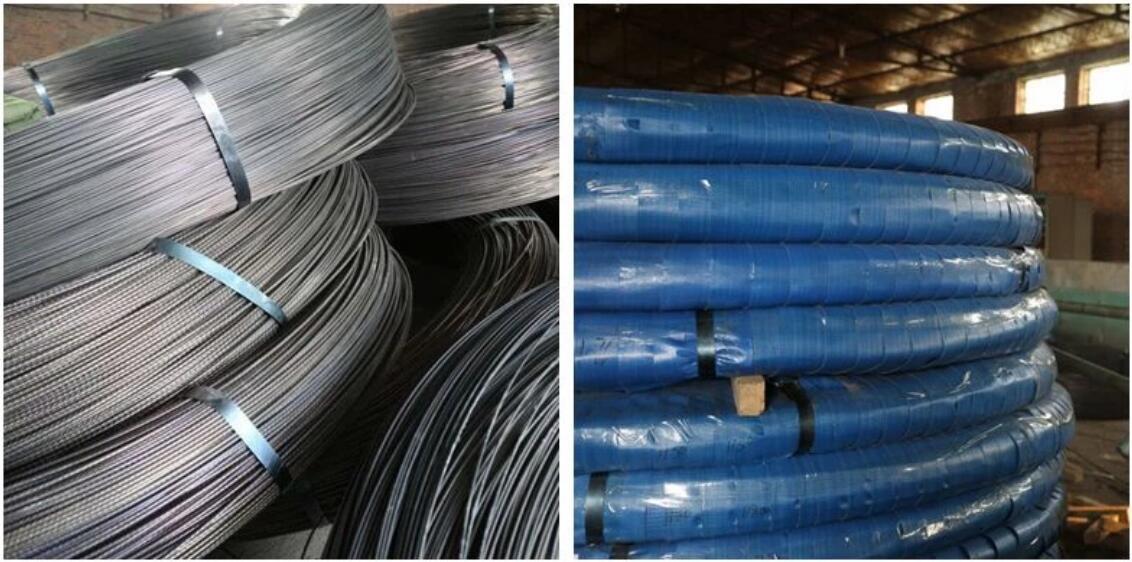

Loaging Pictures:
